ProSam 10 Manual Sampler
ProSam 20 Pneumatic Sampler
Specifications:
Measurement Range: Consistency 0...7%
Maximum Pressure: 350 PSI
Connectors: Stainless Steel 316
Valve threads: 1-1/2 “ NPT Tapered
Mounting nipple: 1-1/2 “ NPS
Straight Water flushing nipple: 1/4” NP
Other Products From
Conmark Systems |
Safe and Easy Process Sampling
ProSam™10 Sampler
Conmark’s ProSam 10 Manual Sampler is a proven solution for the extraction of a “Representative” sample from a pulp and paper process line. The sample may be used in laboratory analysis to determine the value of the process parameter being examined. This non biased sample provides for the quick calibration of a measuring transmitter. The Sampler is designed so that its operation will not interfere with the flow of a representative sample from the process stream. The operator can safely extract the sample without being subjected to harsh process conditions that may accompany the sample extraction. The ProSam 10 is manufactured in USA.
ProSam™10 Description

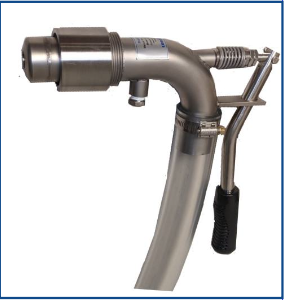

The ProSam 10 is designed to be used in screened pulp only, without shives or debris, for o to 7%. Pulp sampler is activated by pulling the handle on sampling valve towards the user. Closing the valve occurs when the user lets go of the handle to release the tension on the SS spring. Stroke length can be adjusted by the handle movement. The ProSam sampler head penetrates inside stock line by-passing the water layer and its shape eliminates dewatering of the sample during the sampling process. Inner parts of the valve can be flushed with water after sample has been taken. Flushing prevents build up or plugging in the sample valve and reduces errors in subsequent sample extractions. ProSam piston forms a metal to metal seal for long life durability.
ProSam™20 Description

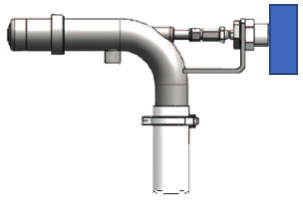

ProSam sampler is available with a operating cylinder and push button to simplify sample extraction. ProSam 20 can be connected to ProEye CS or ProEye 100 for synchronized sampling. When a sample is required by ProEye, sample time and measured values are stored in the memory of ProEye for future review and transmitter calibration.
Installation
The ProSam 10 manual sampler must be mounted in proper place in the process where a representative sample may be withdrawn. The chosen location must correlate to the process parameter being measured. It cannot be installed anywhere in the pipe. Pressures and process conditions must be proper for the measured parameter and the applied transmitter. The sampler must not interfere with measurement and have adequate pressure to extract a sample. ProSam 10 is mounted through a 1 1/2” NPT coupling that is welded on the process pipe. It should be placed 24 inches downstream of the measuring transmitter. Rotating the ProSam 45 Degrees from the transmitter measurement location minimizes any interaction between the transmitter and the operation of the sampler. Flushing sampler with water is recommended. A waterline and a shutoff valve is needed. A hose is attached to the outlet to reduce splashing.
|
