ProEye™ 100
No moving parts and no sample lines guarantee high reliability and no maintenance. Maintenance personnel have access to analyzer for remote calibration and maintenance.
Application Settings

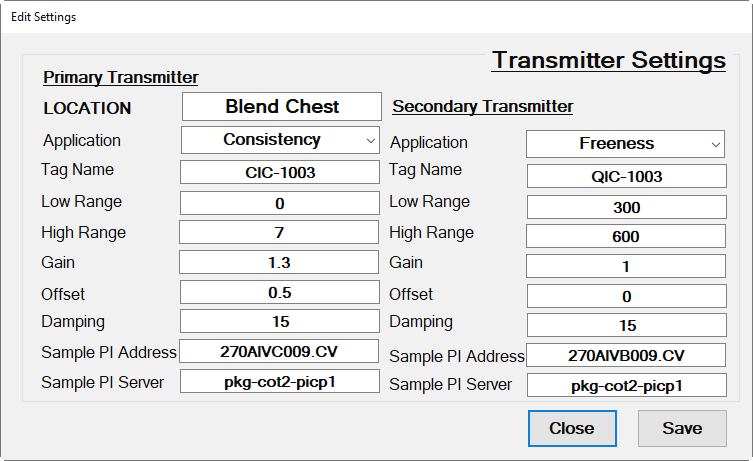

Analyzer Settings
Other Products From
Conmark Systems |
Multiapplication In-Line Process Analyzer!
ProEye™100 Versatile In-Line P&P Process Analyzer
ProEye™100 uses a proprietary measuring technique to determine the Properties of the pulp by calculating a matrix of strobed LED responses from the furnish. ProEye™100 produces a real time Pulp properties reading for use by operations. ProEye™100 has two independent process variables it can measure simultaneously, like Consistency and Freeness or Ash and Consistency. Typical applications include chemical, mechanical and recycle pulp and paper machines. ProEye™100 does not require maintenance. Unlike other on-line measurement technologies, ProEye 100 provides a real-time process measurements for more precise process control. ProEye™100 is manufactured 100% in USA and is patent pending.
ProEye™100 Applications

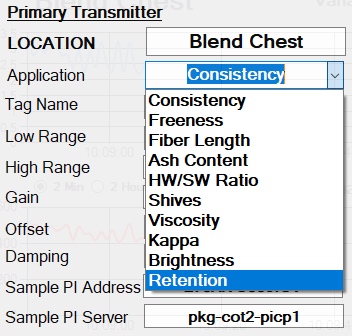

Pro-Eye™100 Remote Touchscreen Monitor (RTM) allows the user to select from the menu the applications they want to utilize with the transmitter. There are options for Consistency, Freeness, Fiber Length, Ash Content, HW/SW Ratio, Kappa, DShives, Retention, Viscosity, Brtightness, etc. The RTM can be installed 50 ft or more from the sensor location. There are 4 binary inputs, 4 relay outputs and two 4-20ma outputs. All connections are active. Intuitive, menu driven programming with 7” color touch screen makes set-up, calibration and troubleshooting simple. The RTM runs on a Windows 11 operating system which makes for easy interface.
Simple Setup and Calibration
Setting the measurement range and calibrating the ProEye™100 is simple and easily accessible through the Menus and Automatic connection to PI system for correlation calculations with Lab samples. The Analyzer is tracking the Lab samples automatically and adjusting the measurement settings without maintenance involvement. The Analyzer utilizes an advanced math library for correlation, regression, statistical calculations and predictive modeling to keep the measurement accuracy available in real time to the user.
Features and Benefits:
- Unique measuring probe design.
- Mill-Spec quality electro-optical components.
- Four LED back scattering lights: IR, RED, GREEN and BLUE.
- Sapphire process lens, 7 mm thick to prevent sensor damage.
- No moving parts, No regular maintenance.
- Excellent Repeatability, Linearity and Resolution.
- Automatic Regression based calibration.
- Unaffected by varying process conditions.
Materials of Wetted Parts:
- AISI 316L (standard) or Titanium optional.
- Coupling: AISI 316L or Titanium optional.
Specifications:
- Measuring range 0 - 12% Consistency.
- Process pressure rating ANSI 150.
- Process temperature 32...280ºF (0...138ºC).
- Ambient Temperature: 32...140ºF (0...60ºC).
- Supply Voltage: 24VDC/110VAC
- Enclosure - NEMA 4X (sensor), NEMA 4 (display unit)
|
